| Place of Origin: | China |
|---|---|
| Brand Name: | Hankscraft |
| Certification: | ISO,Rohs,UL |
| Model Number: | HK- SNR33303 |
| Minimum Order Quantity: | 1000 PCS |
| Price: | Negotiable |
| Packaging Details: | Carton box/Wooden box/Pallet |
| Delivery Time: | 10 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 100000 Pcs/ Week |
| Volage: | 220V | Frequency: | 60/50HZ |
|---|---|---|---|
| Usage: | Valve Motor | Power: | Max 6 W |
| OEM: | Acceptable | RPM: | 1.05/1.2 |
| High Light: | permanent magnet stepper motor,permanent magnet electric motor |
||

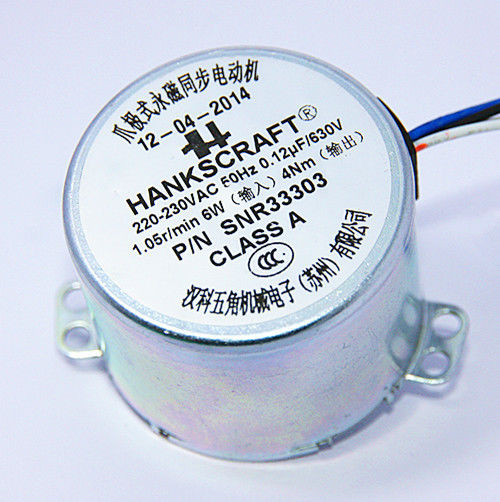

Customized UL 220V 4W SNR Valve Small Appliance Motors
The primary gear is a plastic gear, and the remaining gears are machined metal gears. The gears have high strength and can withstand large torque impacts.
They can withstand loads of more than 6N.m.
With a load of 3N.m, forward 15 seconds, stop 5 seconds, and reverse 15 seconds. . . Round trip test, 15 seconds count as one cycle. Life is greater than 100,000 times
| Product name | Customized UL 220V 4W SNR Valve Small Appliance Motors |
| Volage | 220V |
| Frequency | 60/50HZ |
| RPM | 1.05/1.2 |
| Usage | Househould Appliance,Automation Instrument, Valve motor Advertisement, Satellite antenna, Monitoring Euipment motor, Medical machine |
| Power | 6W |
| Feature | Small size, high torque, low noise, low power consumption, high safety factor, long life |
| Insulation class | B |
Stall Torque |
4.0N.m MIN |
| Lead color | White/Blue |
| Terminals 2 REQ D | Escubedo terminal P/N 6426 02 |
| Packing | Carton box |
Customized UL 220V 4W SNR Valve Small Appliance Motors feature
1. Gear train:
Phase 1: POM
Phase II: POM / Mechanical Gear
The third stage: mechanical gear
Phase 4: Machining the gear
Phase 5: Machining the gear
2. Lead:
22AWG 105 ° C UL
Specification: 22AWG 105 ° C UL requirements
220V motor must meet CCC requirements
120V, 24V motors must meet UL
All dimensions with tolerances are critical dimensions.
Motor meets ROHS requirements
