| Place of Origin: | China |
|---|---|
| Brand Name: | Hankscraft |
| Certification: | ISO,Rohs,UL |
| Model Number: | HK- SNR33306 |
| Minimum Order Quantity: | 1000 PCS |
| Price: | Negotiable |
| Packaging Details: | Carton box/Wooden box/Pallet |
| Delivery Time: | 10 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 100000 Pcs/ Week |
| Volage: | 220V | Frequency: | 50HZ |
|---|---|---|---|
| Usage: | Medical Machine | Power: | 5 W |
| OEM: | Acceptable | RPM: | 1 |
| High Light: | micro synchronous motor,synchronous gear motor |
||

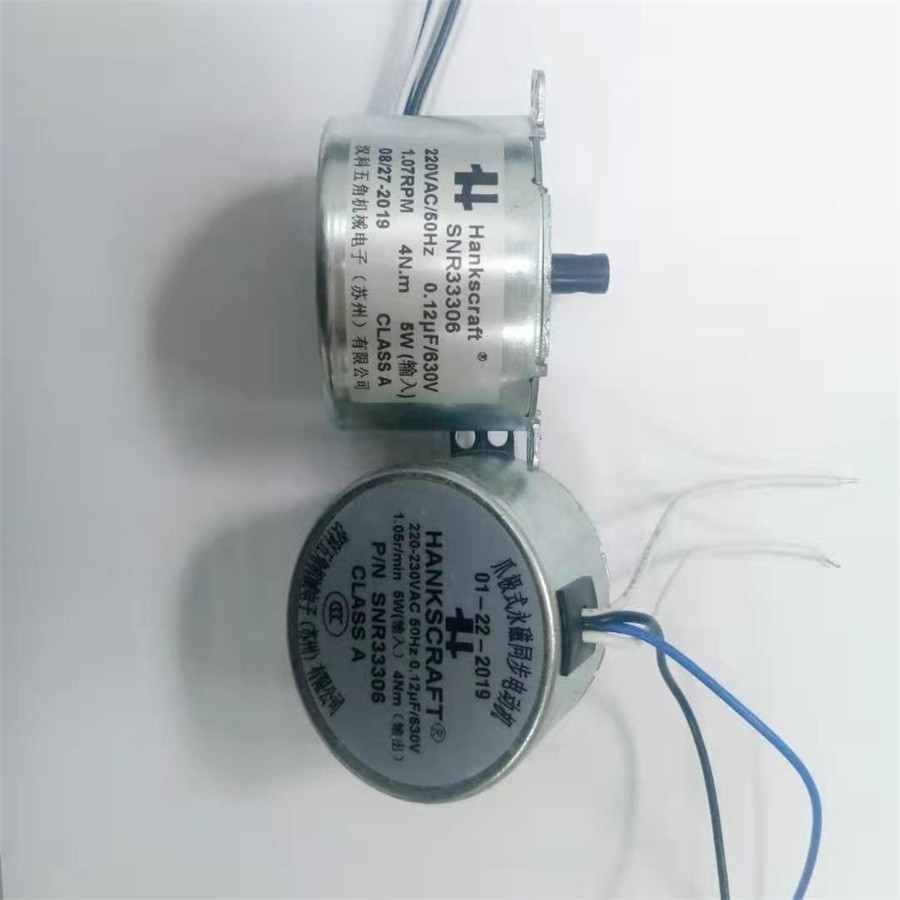

Low Noise 22V AC Househould Appliance Motor
Service:
With a professional engineer team, we can offer the professional opinions when you want
to make OEM products. With active and enthusiastic Sales team, they will be the bridge of
you and factory. Once inquiry received, we promise reply in less than 24 hours. Our mission
is try our best to offer a reliable product with reasonable cost to our valuable customers.
The primary gear is a plastic gear, and the remaining gears are machined metal gears. The gears have high strength, can withstand large torque impacts, and can bear loads above 6N.m.
With a load of 3N.m, forward 15 seconds, stop 5 seconds, and reverse 15 seconds. Round trip test, 15 seconds count as one cycle. Life is greater than 100,000 times
| Product name | Low Noise 22V AC Househould Appliance Motor |
| Volage | 220V |
| Frequency | 50HZ |
| RPM | 1 |
| Usage | Househould Appliance,Automation Instrument, Valve motor Advertisement, Satellite antenna, Monitoring Euipment motor, Medical machine |
| Power | 5W |
| Feature | Small size, high torque, low noise, low power consumption, high safety factor, long life |
| Insulation class | A |
Stall Torque |
4.0N.m MIN |
| Lead color | White/black |
| Terminals 2 REQ D | Escubedo terminal P/N 6426 02 |
| Packing | Carton box |
Technical requirements NOTES
1. Gear train:
First gear STAGE 1: POM
Secondary gear STAGE 2: POM & iron-based powder metallurgy gear
Three-stage gear STAGE 3: Iron-based powder metallurgy gear
4-stage gear STAGE 4: Iron-based powder metallurgy gear
5-stage gear STAGE 5: Iron-based powder metallurgy gear
Output gear: iron-based powder metallurgy gear
2. 220V motor must meet CCC requirements
3. All dimensions with tolerances are critical dimensions.
Customized UL 220V 4W SNR AC Medical machine motor
